A cassette deck “chewing” tapes is usually the result of the tape transport system losing proper control of the cassette tape as it moves through the mechanism. In normal operation, the tape should move smoothly and at a constant speed from the supply reel to the take-up reel while being held firmly against the capstan by the pinch roller. If any part of this system fails to maintain correct tension, alignment, or speed, the tape can bunch up, wrinkle, loop around the capstan, or become trapped inside the mechanism.

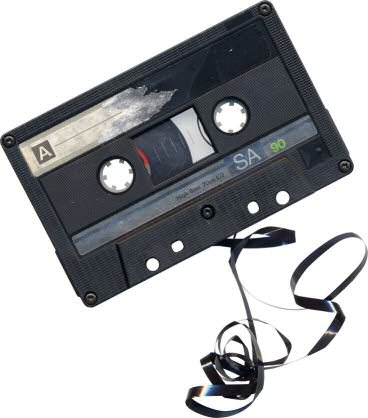

Fig. 1: example of chewed cassette tape.

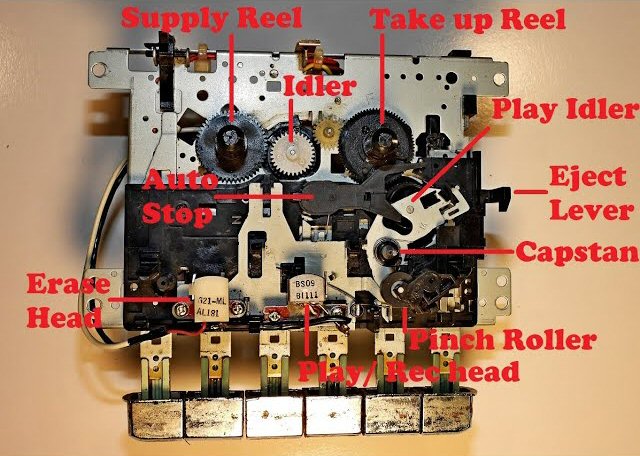

Fig. 2: a typical tape-transport mechanism with labels indicating important parts

One of the most common causes is failure of the take-up reel system. During playback, the capstan and pinch roller pull the tape past the heads, but the take-up reel must continuously collect the used tape and maintain slight tension. If the take-up reel is not turning properly, the tape continues being pulled forward by the capstan but has nowhere to go. It begins accumulating inside the cassette well, often wrapping around the capstan or bunching beneath the cassette shell. This can happen because of worn belts, slipping idler tires, cracked gears, weak reel drive torque, or dried grease inside the reel mechanism.

Belts are an especially common problem in older cassette decks. Most decks use rubber belts to transfer motor rotation to the capstan flywheel and reel drive assemblies. Over time, these belts stretch, harden, glaze, or turn into sticky residue. A stretched belt may still move the mechanism but not with enough torque to properly drive the take-up reel. As a result, the reel either stalls or turns intermittently, causing tape slack and eventual tape chewing.

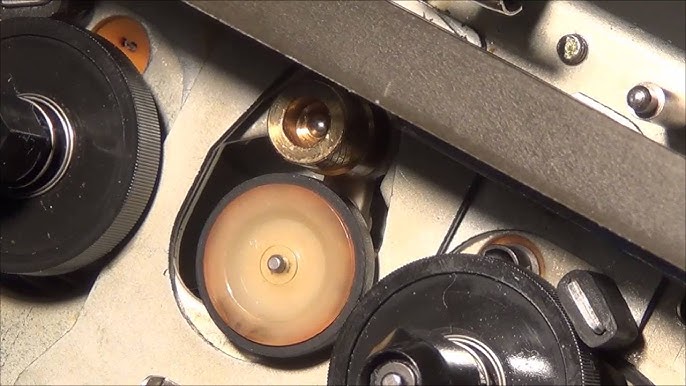

Fig. 3: example of a tape deck mechanism indicating the idler tire showing signs of wear - the edge that contacts either the take-up reel, or supply reel appears to have become smooth and shiny. This will lead to slippage.

The idler tire is another major failure point. In many cassette mechanisms, a small rubber idler wheel transfers rotational force to either the supply reel or take-up reel depending on operating mode. When the rubber hardens or becomes polished smooth with age, it loses grip. The take-up reel may then rotate weakly or stop entirely even though the capstan continues pulling tape forward. This is one of the classic causes of tapes being eaten during playback.

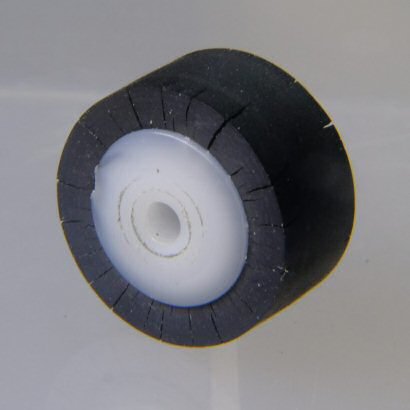

Fig. 4: example of a hardened and cracked pinch roller wheel

A dirty or hardened pinch roller can also cause serious tape transport problems. The pinch roller is the rubber wheel that presses the tape against the rotating capstan shaft. Together, these components precisely control tape speed. If the pinch roller becomes glazed, hard, cracked, or contaminated with oxide deposits, it may not grip the tape evenly. The tape can skew sideways, slip, or wander off its intended path. In severe cases, the tape can wrap around the capstan shaft itself because the roller is no longer maintaining proper pressure and alignment.

Capstan problems can produce similar symptoms. If the capstan shaft becomes dirty, sticky, corroded, or bent, tape movement becomes unstable. Dried lubricant inside the capstan bearing can also increase drag or cause inconsistent rotation speed. Some decks use dual capstans, and if one capstan belt slips or one shaft rotates improperly, tape tension between the capstans becomes incorrect, leading to wrinkling or tape loops.

Improper back tension is another possible cause. The supply reel must provide a controlled amount of resistance as tape is pulled from the cassette shell. If there is too little back tension, the tape can become loose and unstable while traveling across the heads. If there is too much back tension, the capstan must pull excessively hard against the tape, increasing stress and possibly causing stretching or skewing. Back tension problems are often caused by worn felt clutches, deteriorated reel brakes, or maladjusted tension mechanisms.

Cassette shell problems themselves can also cause tapes to be chewed. Some cheap or damaged cassettes have warped shells, seized rollers, excessive friction, or misaligned internal components. If the reels inside the cassette do not rotate freely, the deck’s transport system must pull harder on the tape, increasing the chance of jams or stretching. Old tapes may also become sticky due to binder deterioration, especially if exposed to heat or humidity for many years.

Mechanical alignment issues inside the deck can contribute as well. If tape guides are bent or misaligned, the tape may not travel in a straight path across the heads. Even a slightly tilted guide post can cause the tape edge to ride upward or downward until it folds or catches on part of the transport assembly. Misaligned pinch rollers or capstans can also cause tape skewing.

Auto-reverse mechanisms are often more prone to chewing tapes because they contain additional moving parts, rotating head assemblies, extra idlers, and more complicated reel drive systems. As these mechanisms age, timing errors or weak reel drive engagement can develop, especially during direction changes.

Fast-forward and rewind systems can also create tape damage if braking systems fail. When transport modes switch, the reels must stop smoothly and quickly. If reel brakes are weak or sticky, the reels can continue spinning momentarily after the tape stops moving, creating slack that becomes tangled when playback resumes.

Electronic faults can occasionally contribute too. In decks using electronically controlled motors or logic-controlled transports, failing motor control circuits can cause unstable tape speed or insufficient reel torque. However, purely mechanical causes are far more common than electrical ones.

In practical terms, the most common causes of cassette chewing in vintage decks are deteriorated belts, hardened idler tires, dirty pinch rollers, insufficient take-up torque, and dried lubrication. These issues often occur together because rubber and lubricants naturally degrade with age. Even a deck that appears cosmetically perfect may have transport components that no longer function correctly after decades of storage.

A properly functioning cassette deck should maintain smooth tape tension at all times. The moment the take-up reel loses control of the outgoing tape, the capstan effectively starts feeding tape into the machine faster than it can be collected, and tape chewing becomes almost inevitable.

Even though cassette decks have become a thing of the past, there are still a lot of people that own a collection of cassette tapes - and, cassette decks seem to be making a come back. Regular maintenance of the tape-transport by cleaning it will help to prevent tape slippage, especially at the pinch roller/capstan. Servicing may be required from time to time to ensure that all the belts are still in good condition.
